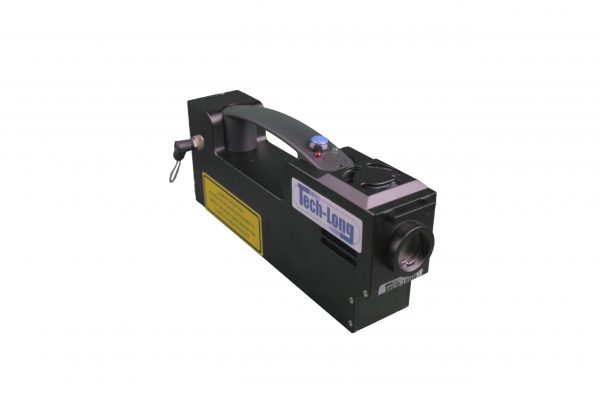

SGL-Mini Laser

The SGL-Mini offers a single wavelength high intensity laser light at 405nm, 445nm, 520nm or 535nm wavelengths.

Technical Details:

• Single wavelength choice of either 405nm, 445nm, 520nm or 532nm
• Radiant power from this class 4 laser:
    – 3W @ 405nm
    – 10W @ 445nm
    – 2W @ 520nm
    – 4W @ 532nm
• Weight: 1.8 – 2.2 KG
• Size (mm):
    – 265 x 50 x 100 (445nm)
    – 275 x 50 x 125 (others)
• Cordless operation
• Battery: 12.6 / 10.5Ah lithium (445nm)
• Battery: 16.8v / 7.8Ah lithium (others)
• Battery life: 240 minutes continuous use
• Supply Voltage: 110v – 240v

Minimum 3-500 charge cycles
Deadmans finger and Remote Interlock

Additional options:
DBL-Mini or TBL Mini

Enables specific enhancement for the detection and inspection of:
Biological stains and body fluids
Hair and Fibres
Skin-prints/marks
Blood
Bone/teeth Gunshot Residue

Supplied with anti-glare viewing goggles
