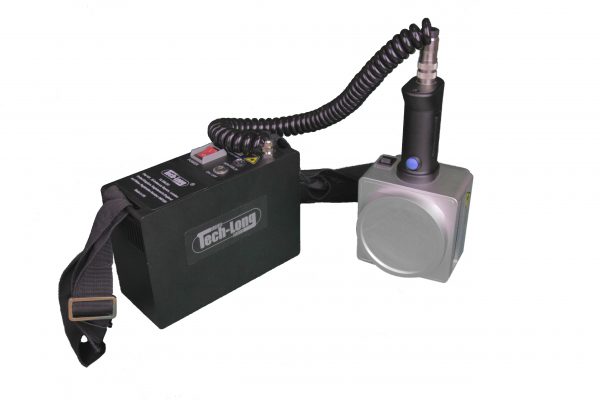

DB-LED

Utilising the most up-to-date and powerful LED technology, this device provides
switchable 445nm and 530nm wavelengths, with no component changes necessary
between the wavelengths.

Technical Details:

• Dual, switchable wavelength ranges of:
    – 445nm: 435 to 455 (60% at 443nm)
    – 530nm: 515 to 539 (60% at 527nm)
• 60 high-intensity LEDs giving narrow spectrum output*
• Power output of 33mW @ 445nm and 11.2mW @ 530nm
• Weight: 4.5kg
• Size (mm): 1880 x 750 x 1330
• Cordless operation
• Battery: 25.2v/15.6Ah lithium
• Battery life: 135 minutes continuous use
• Supply Voltage: 110v – 240v
• Deadmans finger[] [/]

Enables specific enhancement for the detection and inspection of:
Biological stains and body fluids
Hair and Fibres
Skin-prints/marks
Blood
Bone/teeth
Gunshot Residue
Supplied with anti-glare viewing goggles

DB-LED in action
Identifying human body fluids at 445NM and 530NM
